Field fence machine
Wire diameter: 1.8-3.5mm
Edge wire: 2.0-3.5mm
Fence height: below 3m

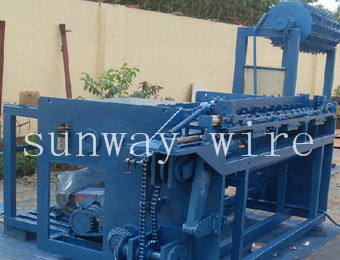

Field fence/ grassland fence/ cattle fence machine
It is used to weave wrap-around fence. It can weave the diameter wire and weft wire together automatically. We have spent a lot of time to develop it which has independent intellectual property rights, self-made. It uses sophisticated computer control, advanced production technology. With novelty, high degree of automation, operational safety and reliability, easy operation, long life. The machine controlled automatically by NC . All parts work coordinately and smoothly .It is operated flexibly and inexpensive. Products are neat and beautiful, diverse specifications.
Material:
It is made of high-quality carbon steel wire and stainless steel wire through by our automatic machines. We can supply products made of cold galvanized and hot-dipped galvanized materials. Specifications can be made by clients'requirements.
Features of products:
Flat mesh surface, firm and precise structure, well-distributed mesh, strong integration, etc. Even if part of the wire mesh is cut or pressed, it will not loosen. Grassland fence
It is made of high-quality carbon steel wire and stainless steel wire through by our automatic machines. We can supply products made of cold galvanized and hot-dipped galvanized materials. Specifications can be made by clients' requirement.
The function of the product
Filed Fence also named Grassland Fence , widely used in America and Europe , is mainly to preserve the ecological environment and prevent massif from landslide. Animal husbandry fence is developing quickly because of its unique function.
Type |
1422mm |
1880mm |
2000mm |
2400mm |
motor |
5.5kw |
7.5kw |
7.5kw |
11kw |
Dimension |
2.8*3.2*2.4(m) |
3.3*3.2*2.4(m) |
3.4*3.2*2.4(m) |
3.9*3.4*2.4(m) |
Efficiency |
≤45row/min |
≤45row/min |
≤45row/min |
≤45row/min |
Twine diameter |
1.9-2.5(mm) |
1.9-2.5(mm) |
1.9-2.5(mm) |
1.9-2.5(mm) |
Side wire diameter |
2.0-3.5(mm) |
2.0-3.5(mm) |
2.0-3.5(mm) |
2.0-3.5(mm) |
Voltage |
380v |
380v |
380v |
380v |
Weight |
3.5T |
3.8T |
4.0T |
4.5T |
Wrap number |
11 |
13 |
18 |
23 |
Minimum weft opening number |
2 |
4 |
4 |
6 |
Weft number |
10 |
12 |
17 |
22 |
Productivity |
21600row/day (150m/h) |
